水导轴承(板条+瓦基)

研龙®hybron轴承可由燕尾板条轴瓦灵活拼装成对开轴承,便于安装和维修,无需出轴,较之筒式轴承过盈安装更可靠。检修时如有需要,可便捷地替换板条轴瓦,也可以在一个轴承中混合或交错装配多种不同材料等级的均质弹塑体聚合物合金燕尾板条轴瓦,轴承达到耐磨,自润滑,有效控制震摆的平衡。

在线订购
产品详情

研龙®hybron轴承可由燕尾板条轴瓦灵活拼装成对开轴承,便于安装和维修,无需出轴,较之筒式轴承过盈安装更可靠。检修时如有需要,可便捷地替换板条轴瓦,也可以在一个轴承中混合或交错装配多种不同材料等级的均质弹塑体聚合物合金燕尾板条轴瓦,轴承达到耐磨,自润滑,有效控制震摆的平衡。

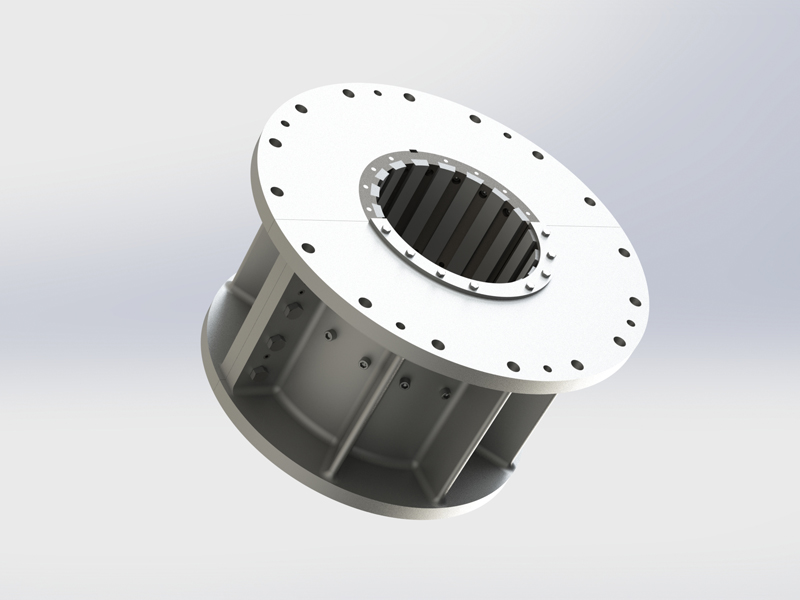

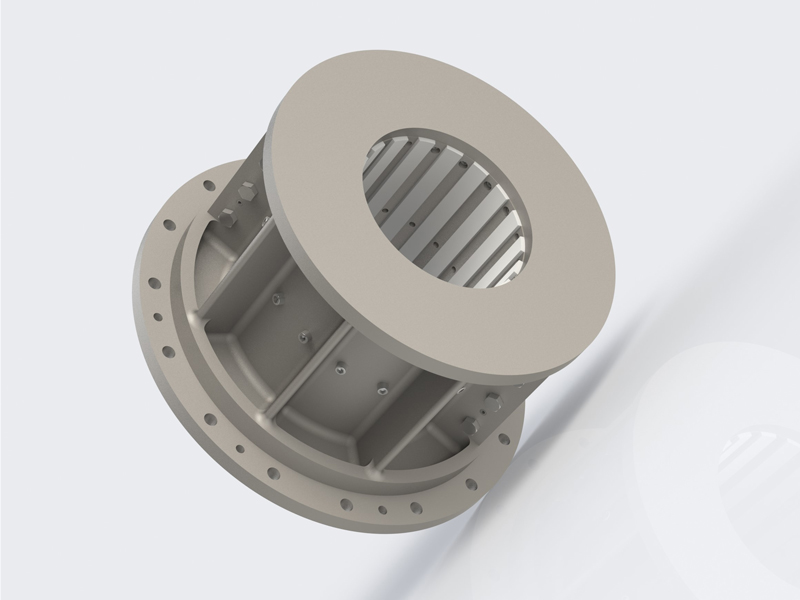

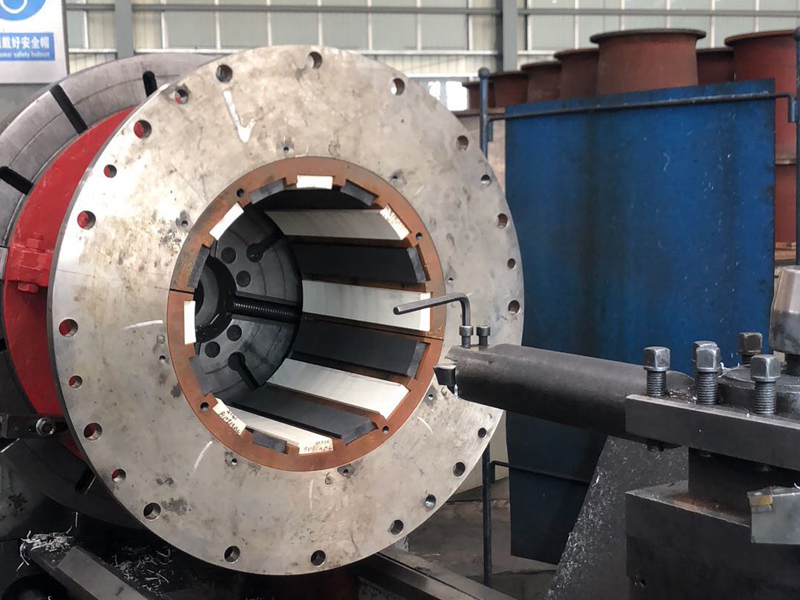

INDRON® hybron bearing can be flexibly assembled into split bearing with dovetail slat bearing bush, which is convenient for installation and maintenance without shaft extension, and more reliable when compared with the interference installation of cylinder bearing. If necessary during overhaul, the slat bearing bushes can be conveniently replaced, and a variety of homogeneous elastoplastic polymer alloy dovetail slat bearing bushes of different material grades can be mixed or staggered in one bearing, so that the bearing achieves wear resistance and self-lubricating, and effectively controls the balance of wobble.水导轴承(板条+瓦基)(图1)

                                           燕尾板条轴瓦规格表
                         Specifications of Dovetail Slat Bearing Bush

燕尾板条轴瓦
Dovetail slat bearing bush
 槽宽Groove width 条数
Number of slats
板条弦宽 Slat chord width 厚度 Thickness 长度比 L/φ
Length ratio L/φ

W, nun 公差Tolerance Ra n CW, mm 公差 Tolerance t, mm TSTN (PREM) hRBR
1 TQDS40 40 ±0.04 3.2 10/12 40.30 +0.40/-0.00 24±1 1.2-1.8 1.5-2.0
2 TQDS45 45 12/14 45.30 24 ± 1
3 TQDS50 50 12/14 50.30 24 ± 1
4 TQDS55 55 14/16 55.35 +0.45/-0. 00 24±1
5 TQDS60 60 14/16 60.35 24±1
6 TQDS65 65 14/16 65.40 +0.50/-0. 00 24±1
7 TQDS70 70 ±0.05 14/16 70.40 24±1
8 TQDS75 75 16/18 75.40 24 ± 1
9 TQDS80 80 16/18 80.45 +0.55/-0. 00 24 ± 1
10 TQDS85 85 16/18 85.45 24±1

注:
燕尾板条轴瓦材料有三个等级可供选择,水泵默认选用白色TSTN,选用TSTN 以外材质标示为TQDS40/xxxx,后四位标示材质。板条出厂以环境温度21~28℃,相对湿度40-60%条件下控制公差。超出此环境条件,板条尺寸有可能受环境条件影响,超出公差范围。遇此情形,请提交测量环境条件及板条尺寸与厂家联系确认是否合理可用。(板条最长830mm,可按需订制)
Note:
There are three grades of dovetail slat bearing bush materials to choose from. White TSTN is selected by default for water pumps. In addition, the materials are marked with TQDS40/xxxx (the last four characters repress ent materials). Tolerance is controlled under the conditions of ambient temperature of 21-28℃ and relative humidity of 40-60% when the slats leave the factory. Beyond the environmental condition, the slat size may be affected by environmental conditions and exceed the tolerance range. In such case, please submit the conditions of measurement environment and slat size, and contact the manufacturer to confirm whether it is reasonable and available. (The maximum length of a slat is 830mm, which can be customized on demand)
