水导轴承（板条整体式）

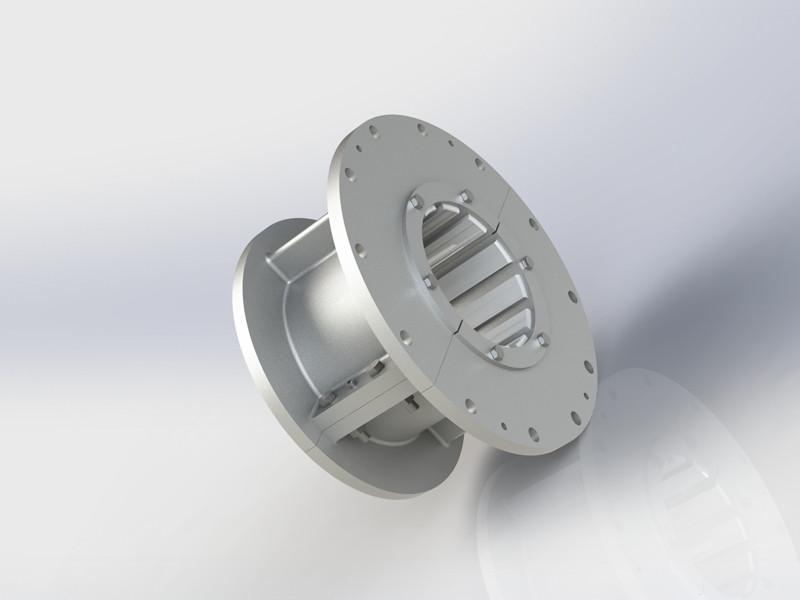

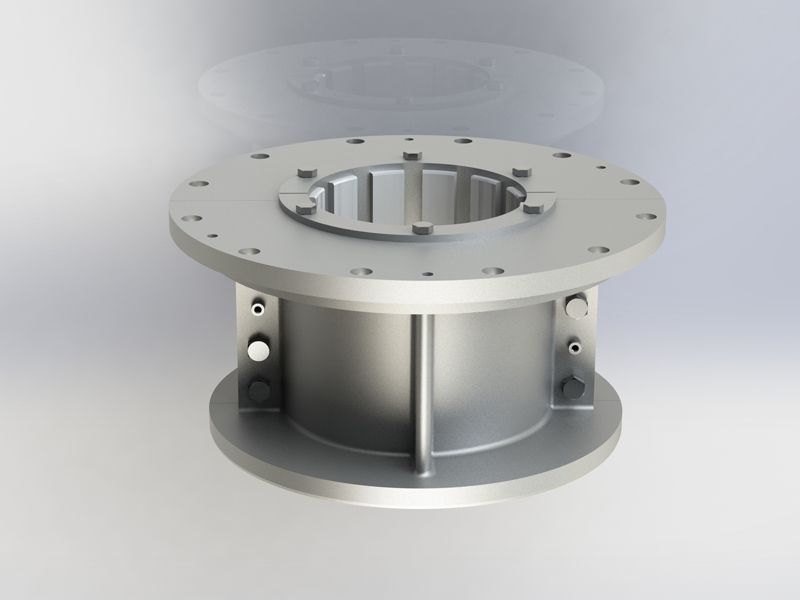

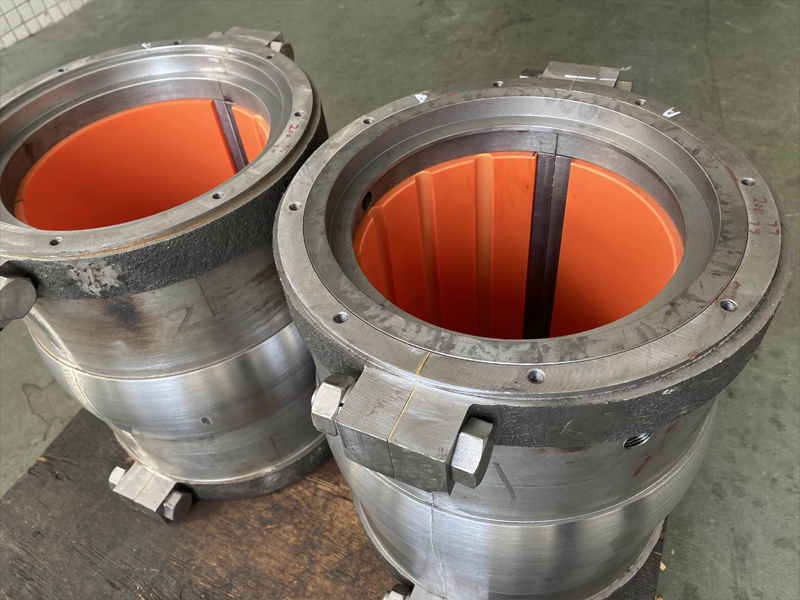

研龙 ®hybron 轴承可由燕尾板条轴瓦灵活拼装成对开轴承，便于安装和维修，无需出轴。相比筒式轴承过盈安装，安装维护可靠性表现优异。检修时如有需要，可便捷地替换板条轴瓦，也可以在一个轴承中混合或交错装配多种不同材料等级的均质弹塑体聚合物合金燕尾板条轴瓦；轴承具备耐磨、自润滑特性，可有效抑制震摆。

INDRON® hybron bearing can be flexibly assembled into a splittype bearing with dovetail slat bearing bushes. It features easy installation and maintenance without shaft removal. Compared with interferencefitted cylinder bearings, it delivers excellent reliability in installation and maintenance. The slat bearing bushes can be conveniently replaced during overhaul. Dovetail slat bearing bushes of homogeneous elastoplastic polymer alloy in various material grades can be mixed or staggerassembled within a single bearing. The bearing offers wearresistant and selflubricating properties and can effectively suppress wobble.

y controls the balance of wobble.

                                        燕尾板条轴瓦规格表
                    Specifications of Dovetail Slat Bearing Bush、


注：
燕尾板条轴瓦材料有三个等级可供选择，水泵默认选用白色TSTN，选用TSTN 以外材质标示为TQDS40/xxxx，后四位标示材质。板条出厂以环境温度21~28℃，相对湿度40-60%条件下控制公差。超出此环境条件，板条尺寸有可能受环境条件影响，超出公差范围。遇此情形，请提交测量环境条件及板条尺寸与厂家联系确认是否合理可用。（板条最长830mm，可按需订制）
Note:
There are three grades of dovetail slat bearing bush materials to choose from. White TSTN is selected by default for water pumps. In addition, the materials are marked with TQDS40/xxxx (the last four characters repress ent materials). Tolerance is controlled under the conditions of ambient temperature of 21-28℃ and relative humidity of 40-60% when the slats leave the factory. Beyond the environmental condition, the slat size may be affected by environmental conditions and exceed the tolerance range. In such case, please submit the conditions of measurement environment and slat size, and contact the manufacturer to confirm whether it is reasonable and available. (The maximum length of a slat is 830mm, which can be customized on demand)
